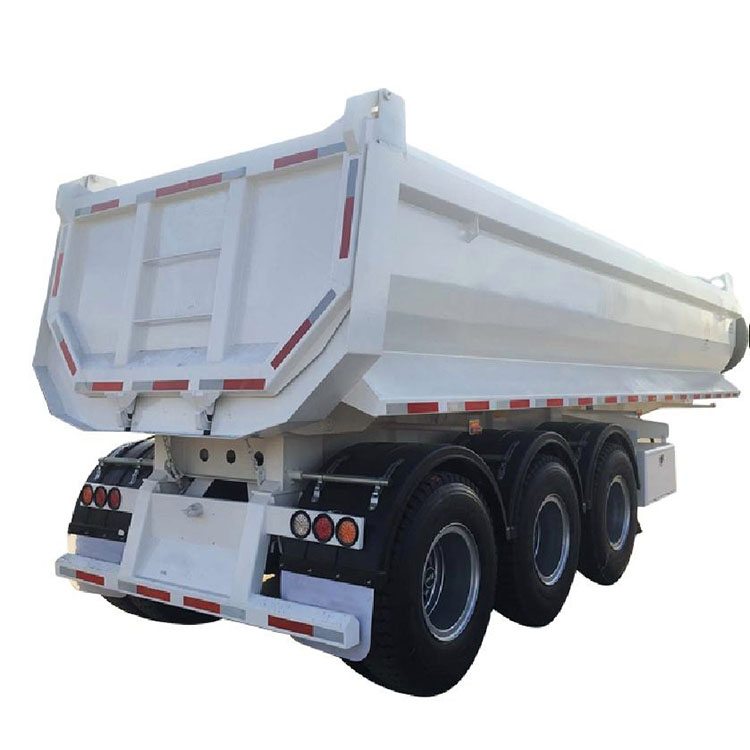

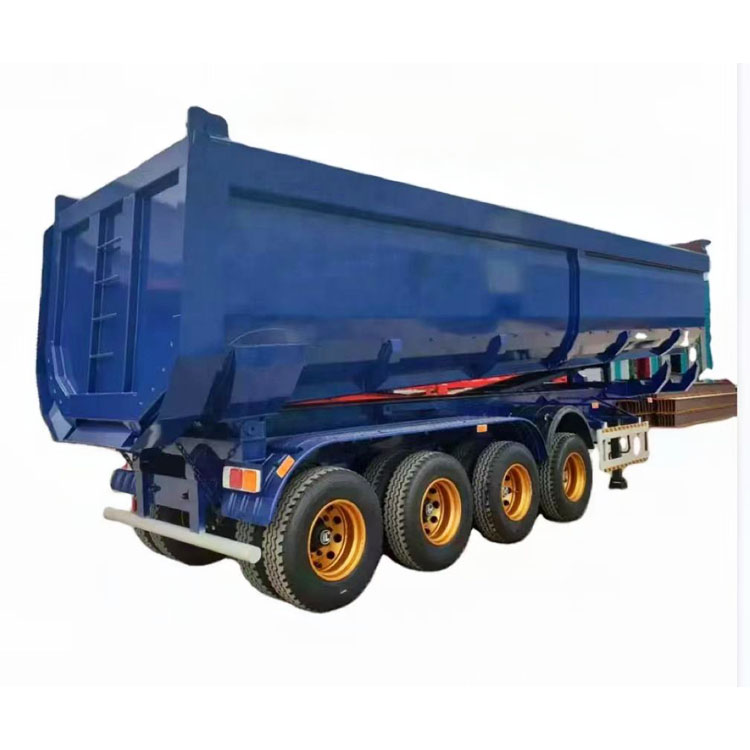

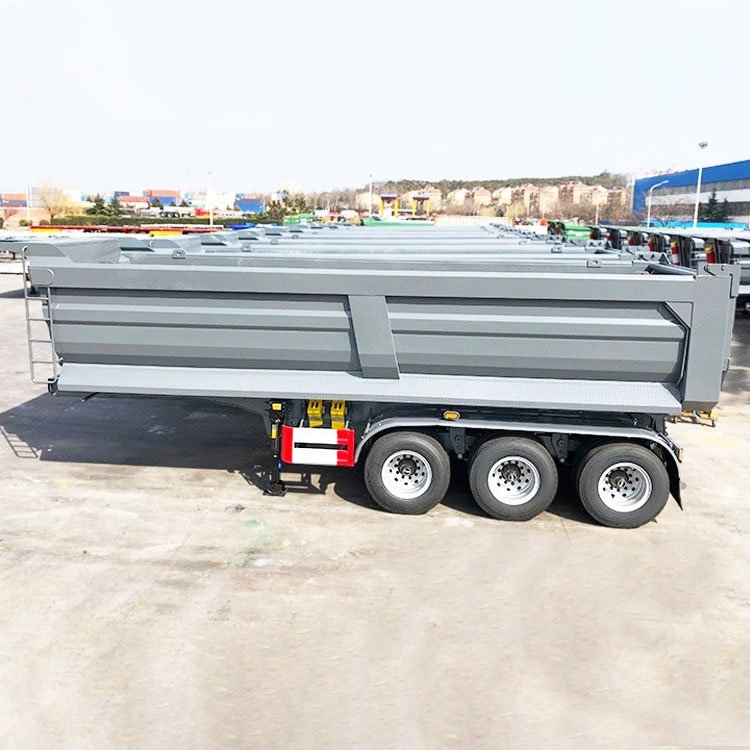

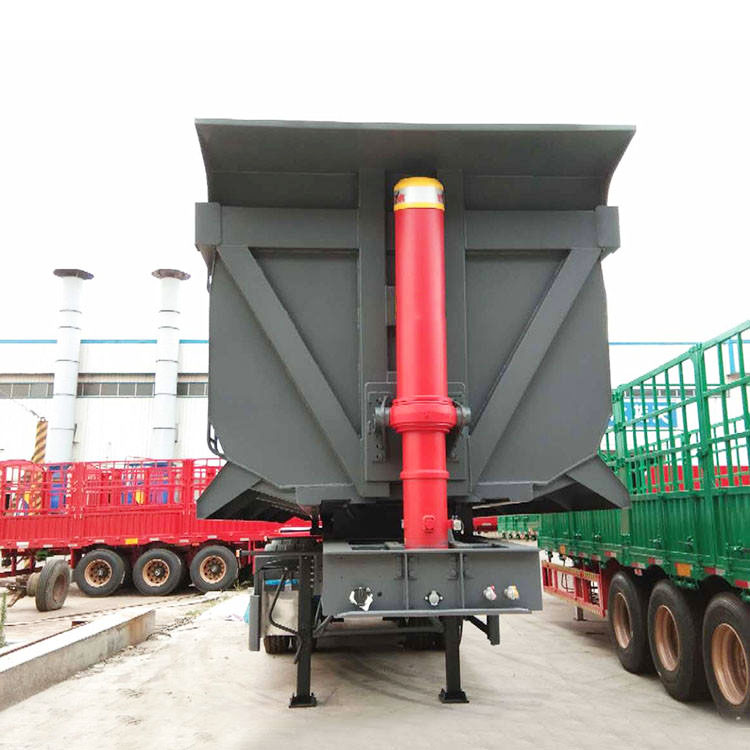

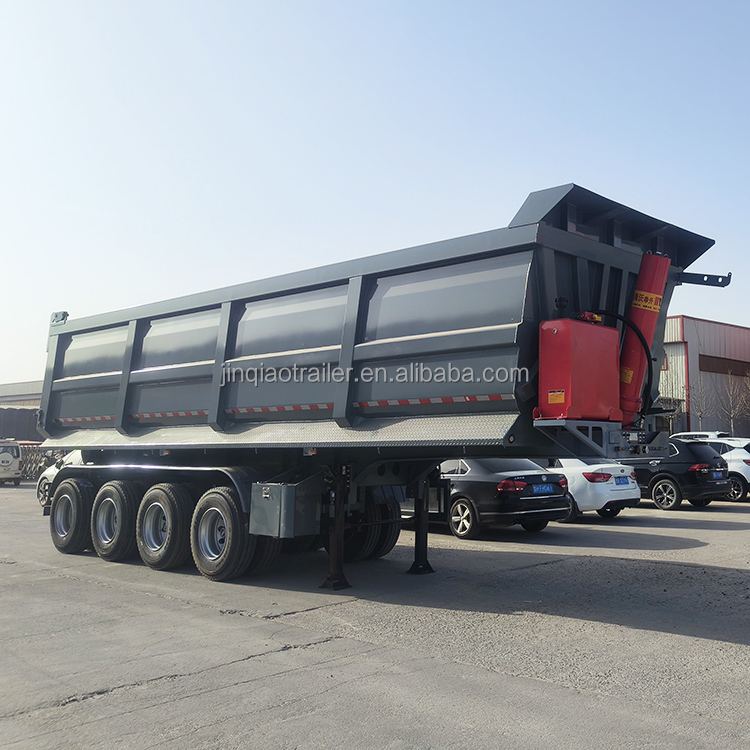

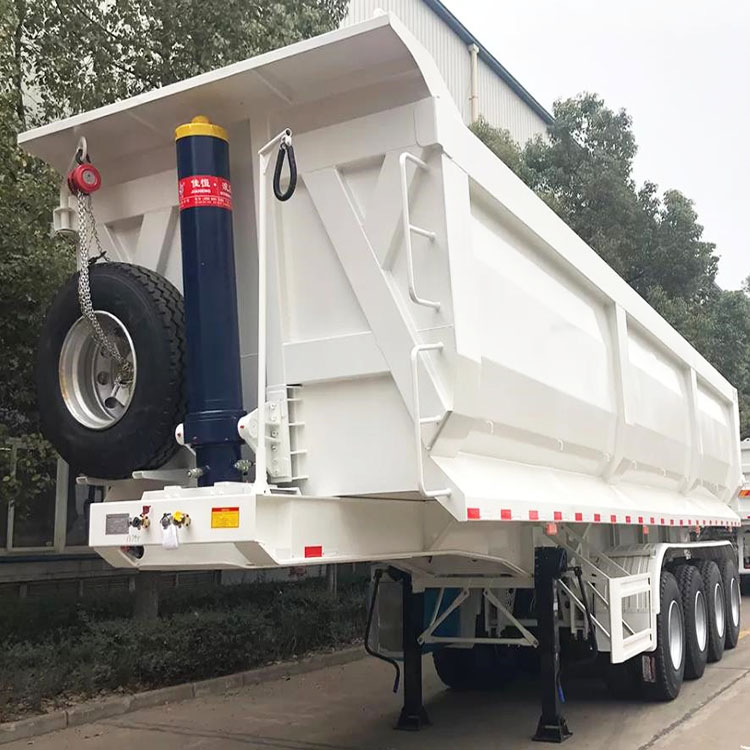

Tractor Towing 3 Axle 60 Ton Full Dump Tipper Trailer Front Lift Drawbar Link With Hydraulic Tipping Functions
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-20(sets):20(days),>20(sets):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
JINQIAO
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Landing Gear
Standard 28Ton
Main Beam
Q345B
King pin
2"(50mm)or3.5"(90mm) JOST
Function
Sand Stone Grain Transporting
Suspension
Mechanical Suspension
Type
Semi-Trailer
Use
Truck Trailer
Color
Customers Optional
Brake System
Dual Line Braking System
Tire
12.00R20
Material
Steel
Axle
13 Ton Fuwa Brand
Size
9.8m*2.5m*3m
Place of Origin
Shandong, China
Max Payload
50 ton
Products Description
Tractor Towing 3 Axle 60 Ton Full Dump Tipper Trailer Front Lift Drawbar Link With Hydraulic Tipping Functions
More>>
Item | Specification |
Brand | Jinqiao Vehicle |
Application | Coal/Mine/Stand/Stone Loading |
Dump Style | Rear Dump |
Loading Capacity | 30T-100T |
Axle | 2/3/4*13/16T,FUWA/BPW/ZHENGYANG |
Length | 11000mm |
Width | 2500mm |
Height | 2800mm |
Cylinder | HYVA (model is according to the length of cargo box) |
Floor Plate Thickness | 5mm |
Cargo Thickness | 4mm |
Cargo Style | Rectanglular/Round |
Front Axle Lifting | Available |
Main Beam | Material Q345/T700 |
Height: 500mm | |
Upper Plate: 14mm | |
Middle Plate: 8mm | |
Lower Plate: 16mm | |
Tire | 11.00R20/12R222.5*8/12/16 pieces,Linglong/Triangle/Double-Coin/Bridgestone |
Rim | 8.0/9.0*8/12/16 pieces, steel/aluminum |
Suspension | Mechanical/Airbag |
Leaf Spring | 90mm*13/16mm*10 pieces |
Landing Gear | 28T two-speed, JOST |
King Pin | #50(2")/#90(3.5"), JOST/Other Brand |
Tool Box | Steel/aluminum |
Specifications of Rear Dump Semi Trailer
Below are specifications for the main parts of the trailer. Contact us for more details.
If you are not sure about the requirements you need, just contact us and our professional staff will provide you with the best solution.
Contact Me>>
Recommend Products
Our Advantages
Tractor Towing 3 Axle 60 Ton Full Dump Tipper Trailer Front Lift Drawbar Link With Hydraulic Tipping Functions
1.Factory direct sale
2.Our products can be customized for various needs.And customizable unique company logo is available.
3.Cutting edge automation equipment adopted in the factory.Steel is welded by automatic submerged arc process, connection spots look more flawless, more solid and durable compared with traditional manual ways.
4.Cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blasting powder painting process .Details Images
Axle
2axles,3axles,13Ton,16Ton, BPW.FUWA,JX brands optitional support longer working without maintenance.
Main Beam
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Twist lock
ISO standard lock suitable worldwide container.
Tire
Famous brand tire optitional ,size customized.
Suspension
Mechanical suspension reinforced
type.
type.
Company Profile
Shandong Dong Xu Vehicle Co., Ltd. is top manufacturer of semi trailer from Shandong province, China. Our company is mainly engaged in the development of international market, and mainly engaged in various types of semi-trailers, semi-trailer parts, trucks and other construction machines. It is committed to providing quality solutions to the international logistics and transportation industry. We are the full-size modified truck enterprise which integrate the design of product scientific research develop-ing, production and sales together. Our leading products are "JINQIAO" brand flatbed semi trailer, low bed semi trailer, skeleton semi trailer, dropside semi trailer, van semi trailer, dump semi trailer, bulk cement semi trailer, fuel tank semi trailer, LNG (Liquified natural gas) tank, CNG (Compressed natural gas) tank, LPG (Liquified petroleum gas) tank, and other special vehicles and spare parts.
Our main goal is to produce good quality products for the satisfaction of our valuable customers. More than 3600 vehicles are delivered to our customers each year, and our products have been exported to South East Asia, Middle West Asia, Africa, and South America, etc. High quality, delicate details, and satisfying after-sale service gives us 100% positive feedback from our customers.
Certifications
Relying on high quality products,good reputation, excellent service. we heartedly desire we'd like to have win-win cooperation and create magnificent future with the domestic and foreign merchants, at the same time, development and create magnificent future together !
