3 Axle 40 Self Loading Trailer Truck,20 Ft Skeleton Container Side Lift
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(sets):1(days),>1(sets):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
JINQIAO
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Tare Weight
6.5T
Type
Semi-Trailer
Use
Truck Trailer
Material
Steel
Axle
13 Ton Fuwa Brand
Size
12.38 m* 2.48 m*1.55 m
Place of Origin
Shandong, China
Max Payload
20001-25000 kg
More>>
Products Description
|

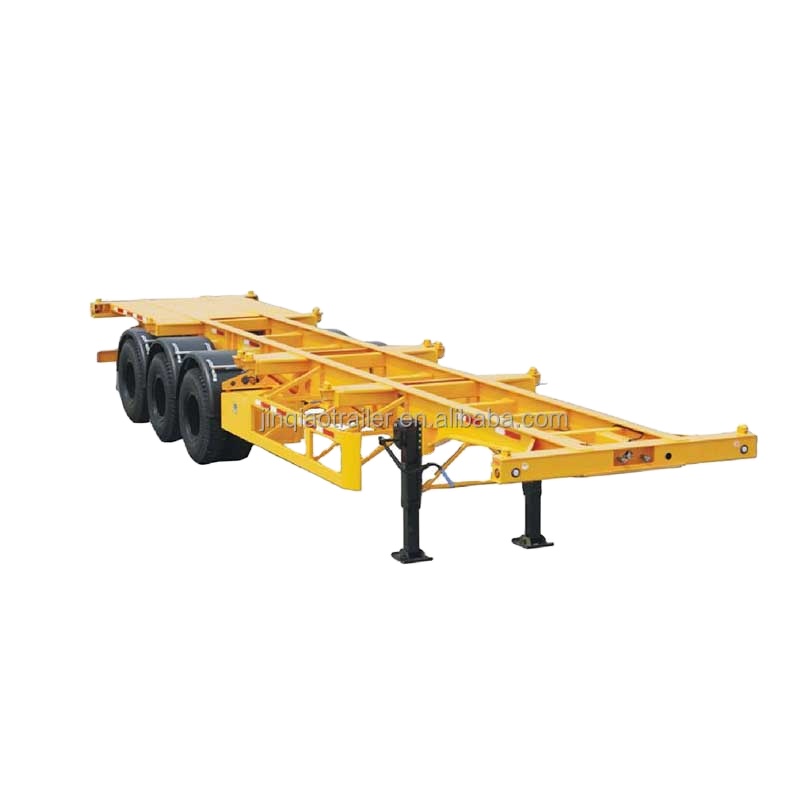

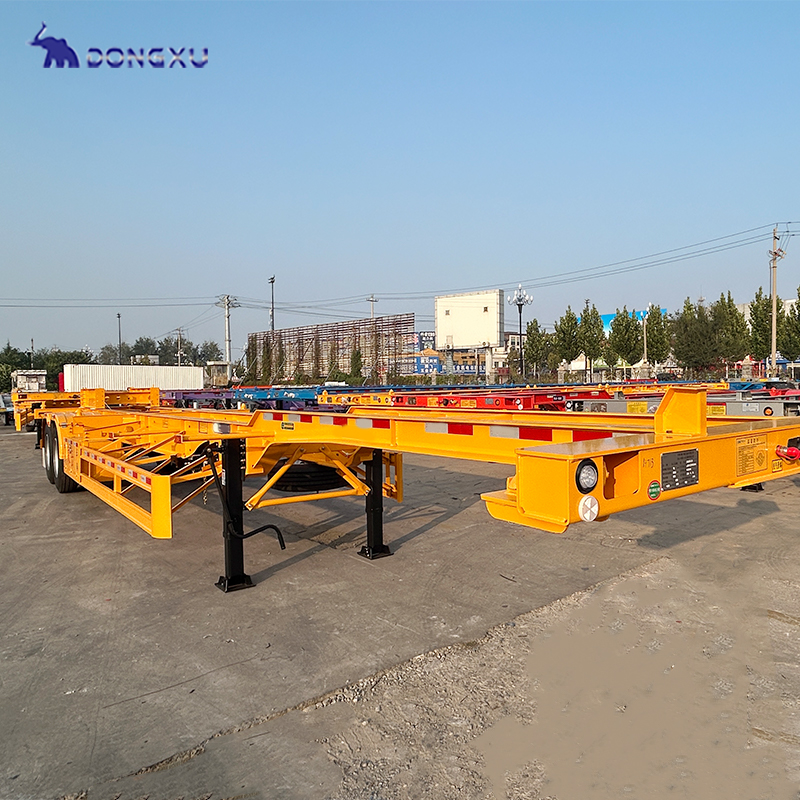

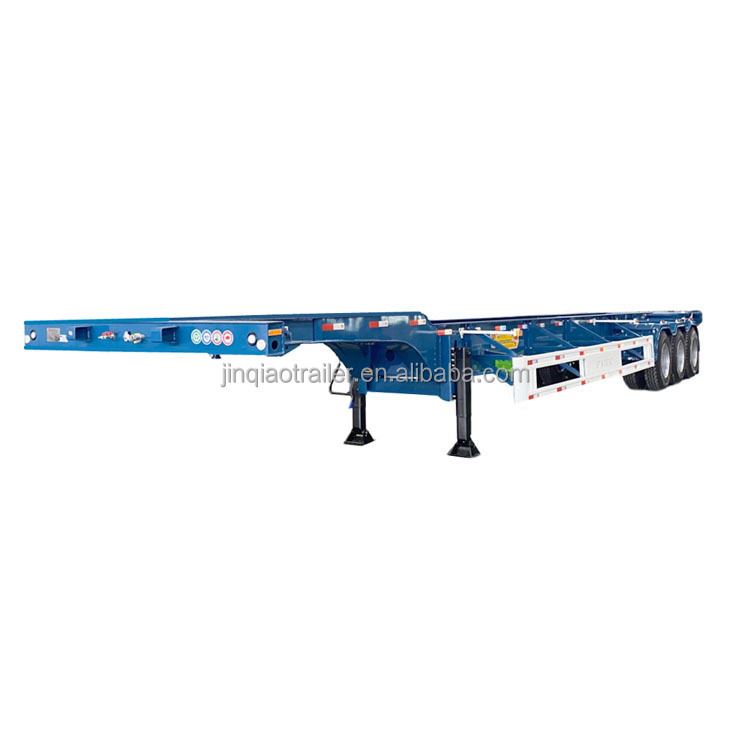

20FT Skeleton Semi Trailer
|
40FT Skeleton Semi Trailer
|
45FT Skeleton Semi Trailer
|
||
|
2 Axles/3 Axles
|
3 Axles/ 4 Axles
|
3 Axles/ 4 Axles
|
||
|
20ft Container Loading
|
1*40ft/2*20ft Container Loading
|
1*45ft/1*40ft/2*20ft Container Loading
|
||
|
Loading Capacity: 20-50 Tons
|
Loading Capacity: 30-80 Tons
|
Loading Capacity: 30-80 Tons
|
||
|
Type: Gooseneck or Tandem
|
Type: Gooseneck or Tandem
|
Type: Gooseneck or Tandem
|
||
|
Main Bean
|
||||
|
Material: Q345/T700
|
Material: Q345/T700
|
Material: T700
|
||
|
Upper Plate Thickness: 12mm
|
Upper Plate Thickness: 14mm
|
Upper Plate Thickness: 10mm
|
||
|
Middle Plate Thickness: 6mm
|
Middle Plate Thickness: 6mm
|
Middle Plate Thickness: 5mm
|
||
|
Lower Plate Thickness: 12mm
|
Lower Plate Thickness: 16mm
|
Lower Plate Thickness: 10mm
|
||
|
Height: 500mm
|
Height: 500mm
|
Height: 420mm
|
||
|
Dimension
|
||||
|
L*W*H: 7000mm*2480mm*1560mm
|
L*W*H: 12400mm*2480mm*1580mm
|
L*W*H: 13950mm*2500mm*1600mm
|
||
|
Axle
|
||||
|
2/3 Axles *13 Ton
JINQIAO/FUWA/BPW
|
3/4 Axles *13 Ton
JINQIAO/FUWA/BPW
|
3/4 Axles *13/16 Ton
JINQIAO/FUWA/BPW
|
||
|
Tire
|
||||
|
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double
Coin/Bridgestone
|
12R22.5 (12/16 Pieces)
Linglong/Triangle/Double
Coin/Bridgestone
|
12R22.5 (12/16 Pieces)
Linglong/Triangle/Double
Coin/Bridgestone
|
||
|
Rim
|
||||
|
9.00*22.5 (8/12 Pieces)
Steel/Aluminum
|
9.0*22.5 (12/16 Pieces)
Steel/Aluminum
|
9.00*22.5 (12/16 Pieces)
Steel/Aluminum
|
||
|
Leaf Spring
|
||||
|
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces
|
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces
|
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces
|
||
|
King Pin
|
||||
|
#50 (2")/#90 (3.5")
JOST/Other Brand
|
#50 (2")/#90 (3.5")
JOST/Other Brand
|
#50 (2")/#90 (3.5")
JOST/Other Brand
|
||
|
Landing Gear
|
||||
|
28 Tons Two Speed
JOST/Other Brand
|
28 Tons Two Speed
JOST/Other Brand
|
28 Tons Two Speed
JOST/Other Brand
|
||
|
Twist Lock
|
||||
|
4 Sets
|
12 Sets
|
12 Sets
|
||
|
Painting
|
||||
|
Electrophoresis Painting
|
Electrophoresis Painting
|
Electrophoresis Painting
|
||

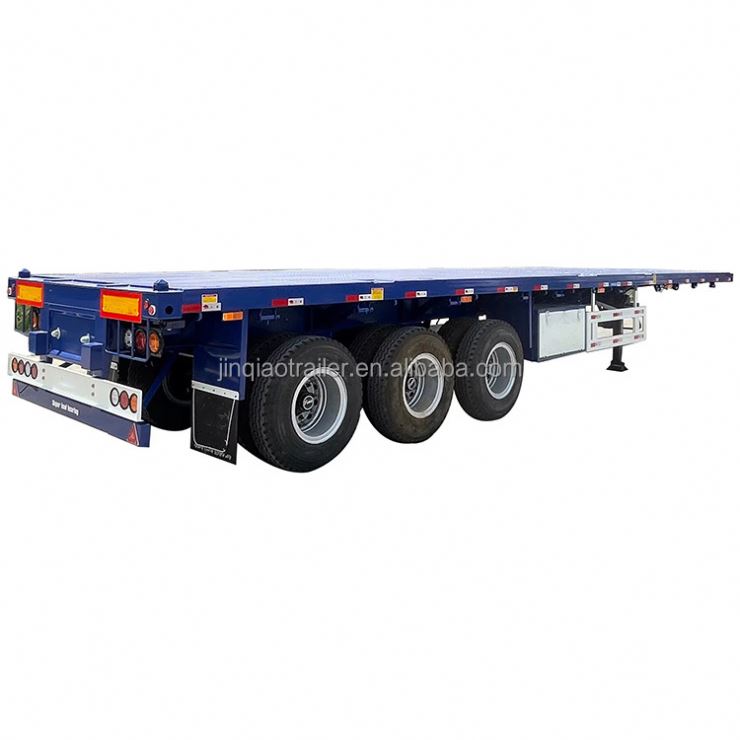

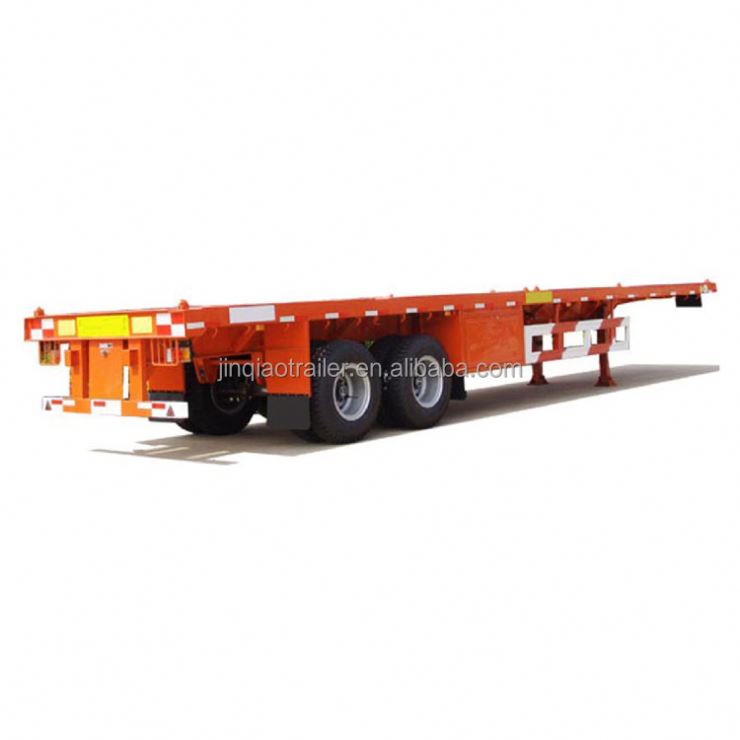

Specifications of Flatbed Semi Trailer
Below are specifications for the main parts of the trailer. Contact us for more details.
If you are not sure about the requirements you need, just contact us and JINQIAO professional staff will provide you with the best solution.
Contact Me>>
Recommend Products
Our Advantages
1.Factory direct sale 2.Our products can be customized for various needs.And customizable unique company logo is available. 3.Cutting edge automation equipment adopted in the factory.Steel is welded by automatic submerged arc process, connection spots look more flawless, more solid and durable compared with traditional manual ways. 4.Cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blasting powder painting process .
Details Images
Axle
2axles,3axles,13Ton,16Ton, BPW.FUWA,JX brands optitional support longer working without maintenance.
Main Beam
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Twist lock
ISO standard lock suitable worldwide container.

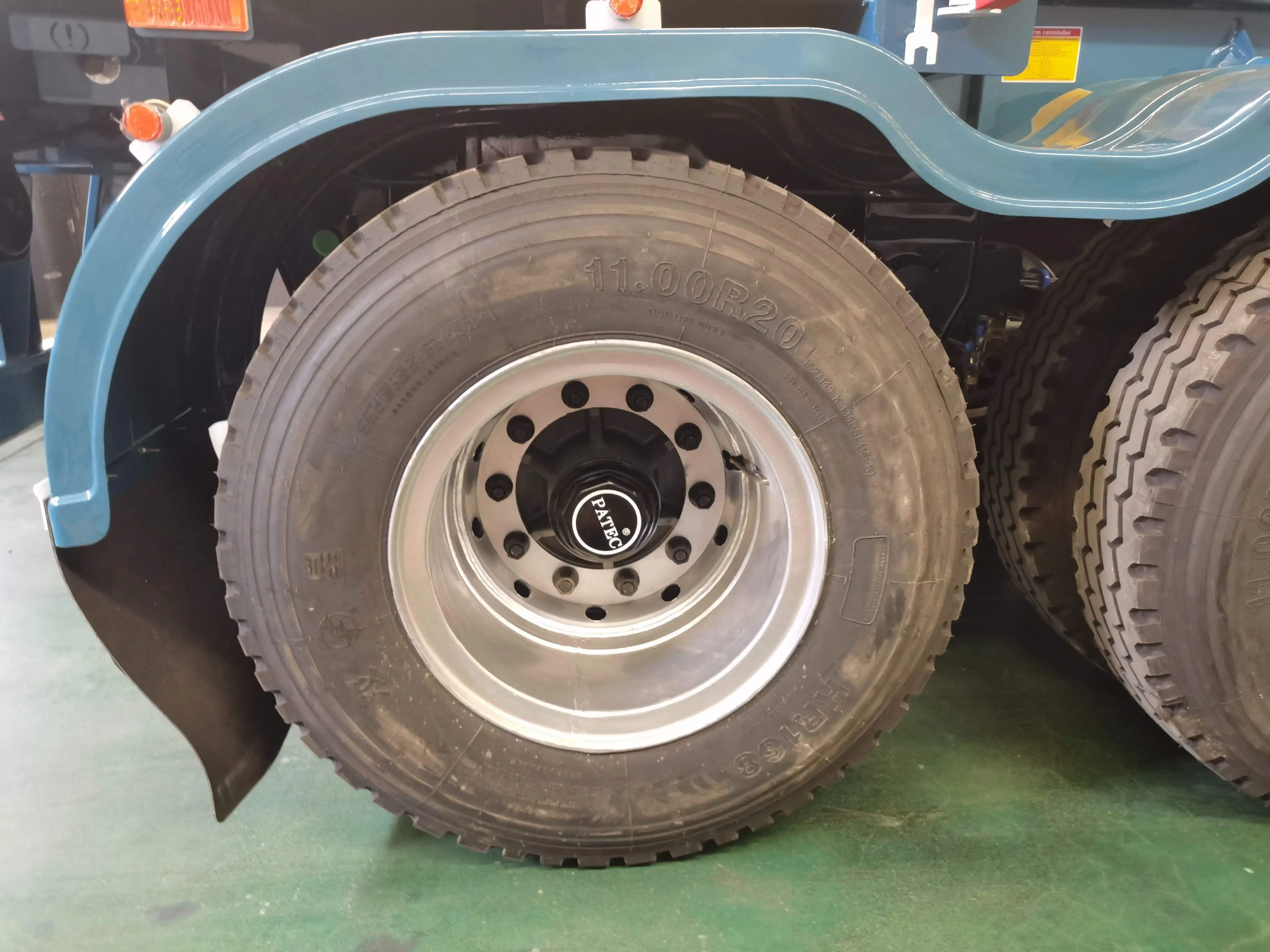

Tire
Famous brand tire optitional ,size customized.
Suspension
Mechanical suspension reinforced
type.
type.
Company Profile
Shandong Jinqiao International Trade Co., Ltd. belongs to the foreign trade business department of Shandong Yuncheng Dongxu Special Automobile Manufacturing Co., LTD. The company was founded in October 2008, in 2014 included in the national Ministry of Industry and Information Technology automotive announcement catalog management, is a national high-tech enterprise, science and technology small and medium-sized enterprises, provincial "specialized special new" enterprises. The company has passed ISO9000 quality management system certification and CAC compulsory product quality CCC certification. The company is a set of technology development, production, sales in one of the specialized special automobile manufacturing and auto parts processing enterprises. The company produces container trucks, dump trucks, various series of semi-trailers, full trailers, vans, special vehicles and more than 60 varieties. Every year, more than 5,000 semi-trailers are exported to more than 30 countries around the world.
Certifications
Relying on high quality products,good reputation, excellent service. we heartedly desire we'd like to have win-win cooperation and create magnificent future with the domestic and foreign merchants, at the same time, development and create magnificent future together !
Exhibition
FAQ
1.What's your MOQ?
A: One unit trailer or truck.
2. How I believe you?
A : We have a factory ourselves,we are on this business for few years in China. Our factory is very famous in the Shandong China. We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time? How do you transport the semi trailers ?
A: Within 15-35 days after we confirm you requirement. We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
